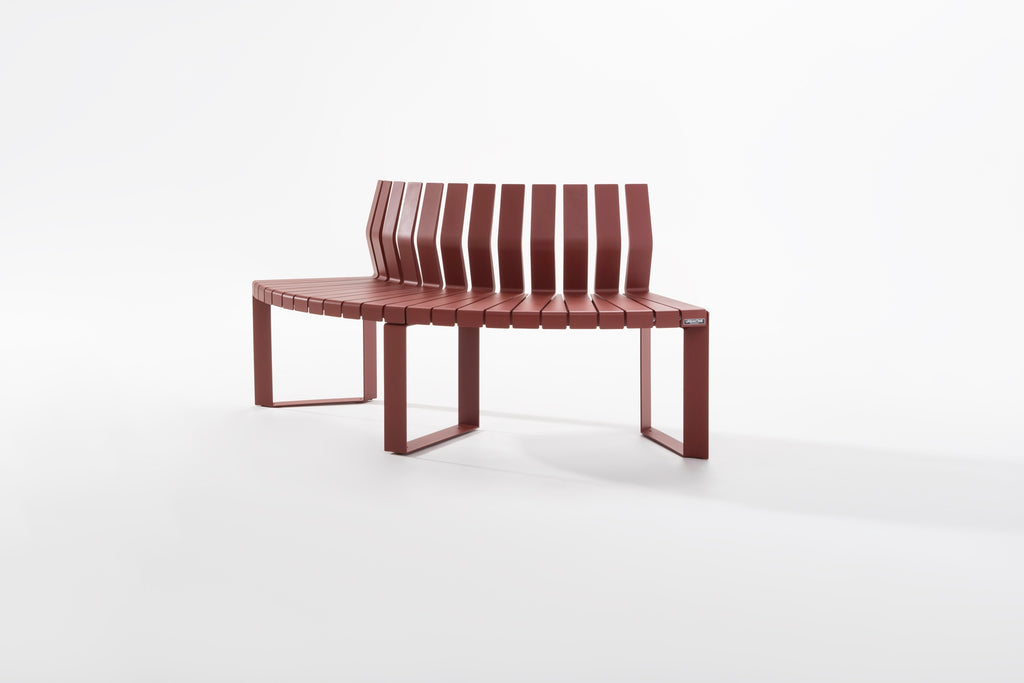

Liberty 080 Curved Bench with Backrest

The Liberty.080 curved bench with backrest brings a fluid, sculptural quality to public and commercial outdoor spaces. Designed by Diemmebi R&D, this 90° curved module is built on the same slatted-seat language as the rest of the Liberty.080 collection, with independently pitched aluminium slats that sweep around the curve to form a continuous, inviting seating line.

The bench is offered with a choice of square, trapezium, or infinity leg profiles, allowing it to be configured to suit different settings, and its modular design supports flexible, curved seating layouts across parks, plazas, and streetscapes.

Product Info

Material

Aluminium and Galvanised steel

Dimensions

1240 x 1240 x 810 mm (L x W x H) — 90° curved module, R700 mm, seat height 650 mm, seat depth 472 mm

Weight
Download Catalog ↓

Construction
The seat modules consist of under-seat beams made from 40x40x2 mm square tube in Sendzimir galvanised steel, with independent EN46100 die-cast aluminium slats positioned at an 87 mm pitch (an 80 mm slat plus a 7 mm gap). The entire structure is finished with polyester powder coating. The side frames are made from 5 mm thick DD11 steel sheet, subsequently cold galvanised and finished with polyester powder coating. The bench is not supplied with anchors for ground fixing; it is always supplied with glides, which must be fitted if the elements are not fixed to the ground.

Options
Leg profile: square, trapezium, or infinity

Sustainability
The bench is 100% recyclable and made in Italy from aluminium and galvanised steel. The Liberty.080 collection has been tested to UNI EN ISO 9227:2024, successfully passing a 600-hour salt spray exposure test.

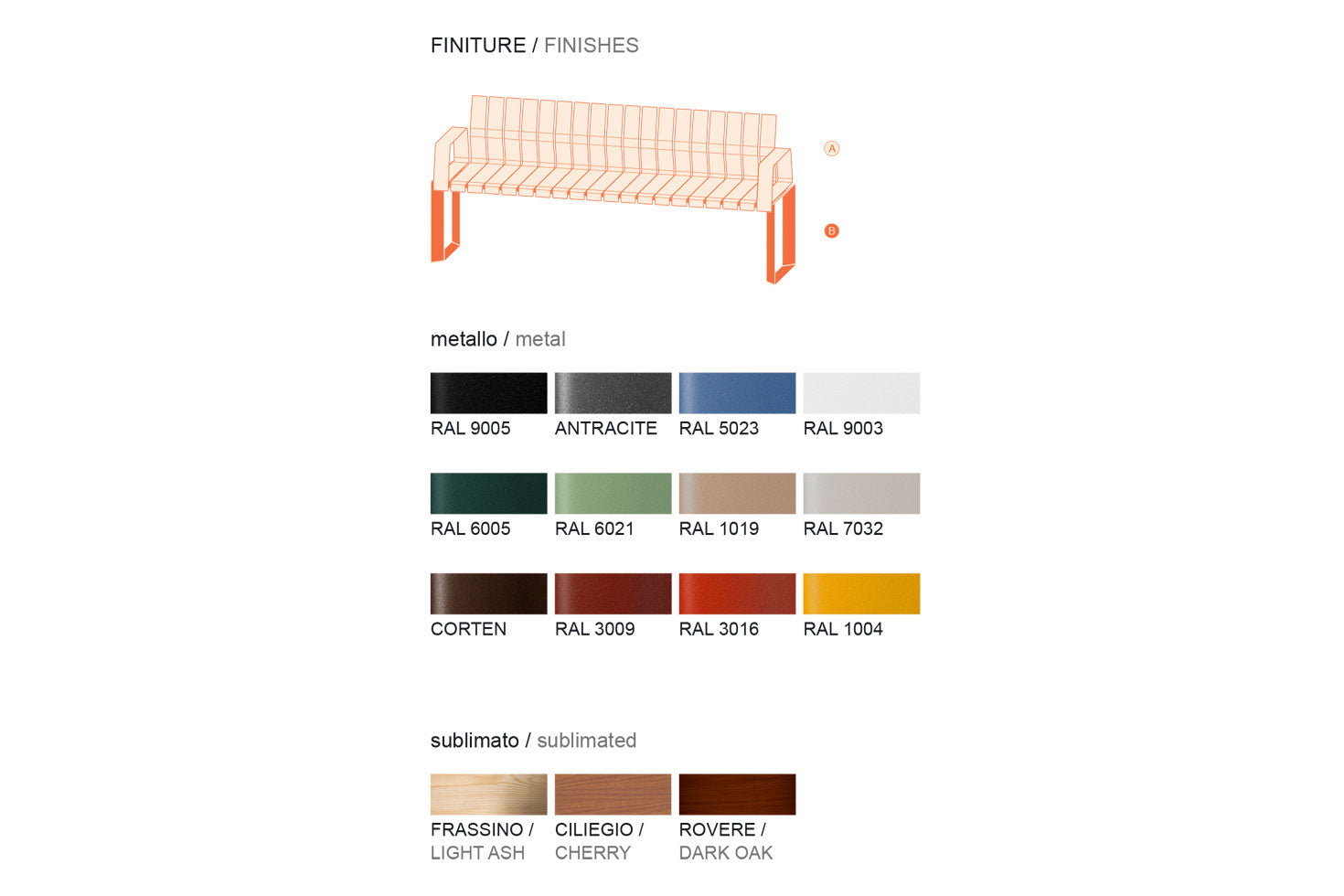

Finishes
Metal: RAL 9005, Anthracite, RAL 5023, RAL 9003, RAL 6005, RAL 6021, RAL 1019, RAL 7032, Corten, RAL 3009, RAL 3016, RAL 1004

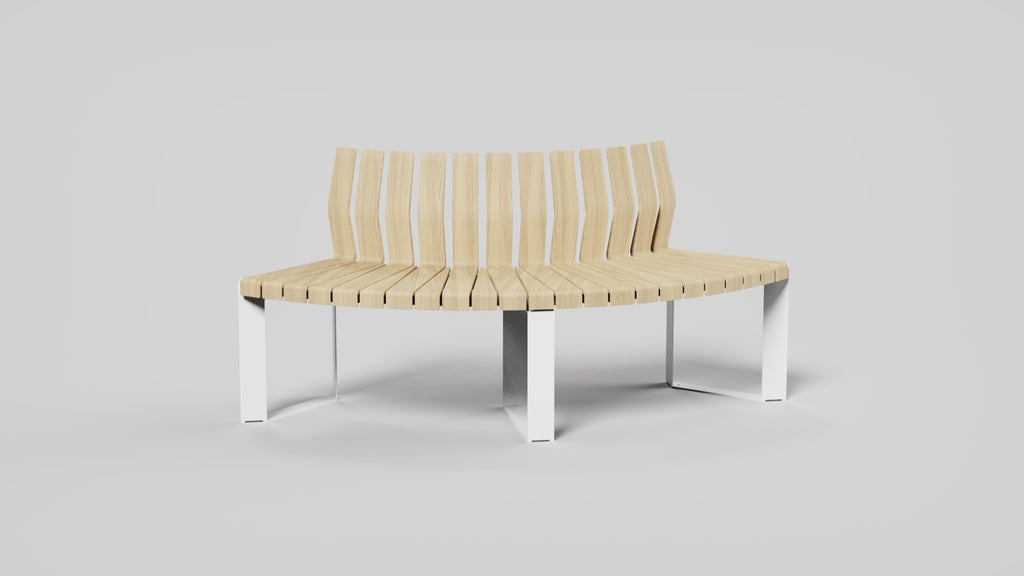

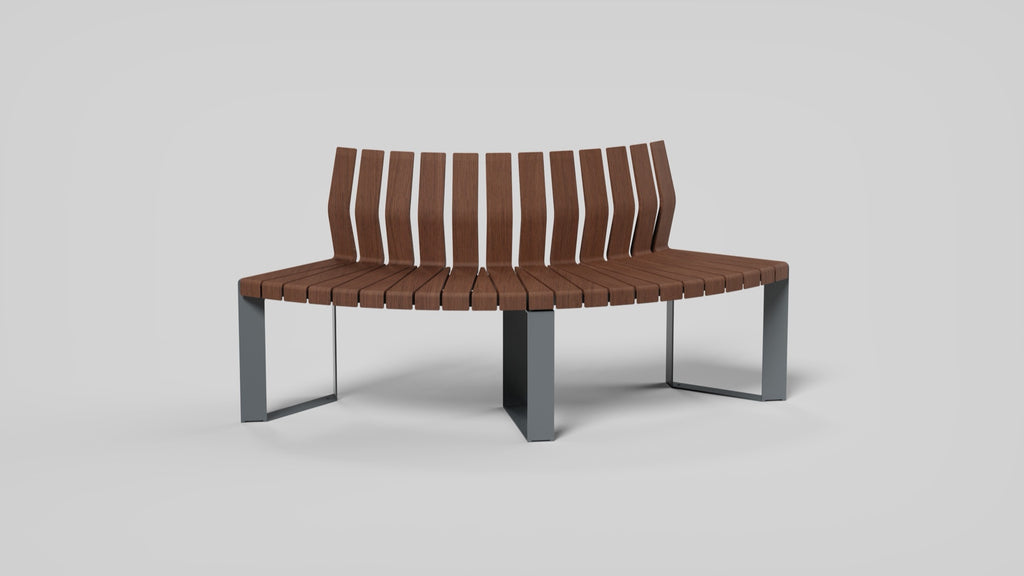

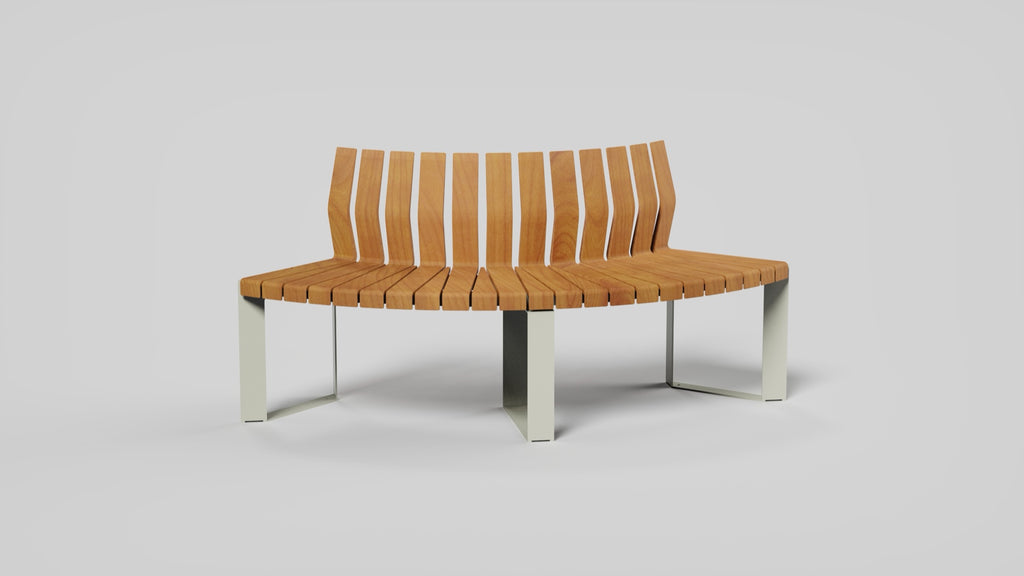

Wood-effect sublimation (available on the curved slats and backrest slats): Frassino/Light Ash, Ciliegio/Cherry, Rovere/Dark Oak
Due to the complex geometry of the slat with backrest, slight aesthetic irregularities may occur in the sublimation pattern; this is an intrinsic characteristic of the artisanal production process.
